What is Rubber Sheet?

Rubber sheet is a flat, continuous sheet of vulcanised rubber — manufactured by calendering or extrusion — supplied in roll form or as cut sheets, in thicknesses from 1.5mm to 50mm. It is a fundamental engineering and industrial material used across the UK in applications as diverse as gasket cutting, pond lining, machine vibration isolation, electrical insulation, agricultural tank lining, and acoustic dampening.

Unlike rubber matting (which is a finished floor covering with textured surfaces), rubber sheet is a technical material valued primarily for its material properties: chemical resistance, elasticity, impermeability, temperature range, and electrical insulation. The correct compound and specification depends entirely on the application environment — choosing the wrong rubber sheet compound is the most common and costly mistake.

We stock over 60 rubber sheet products across all major compounds — EPDM, SBR, neoprene, nitrile, and natural rubber — in widths to 1.4m and thicknesses from 1.5mm to 25mm, all available cut to size. Free UK delivery on all orders, same-day dispatch on orders before 2pm.

Rubber Sheet Compounds — Which Do You Need?

The five main rubber sheet compounds each have a distinct performance profile. Selecting the correct compound is the single most important specification decision.

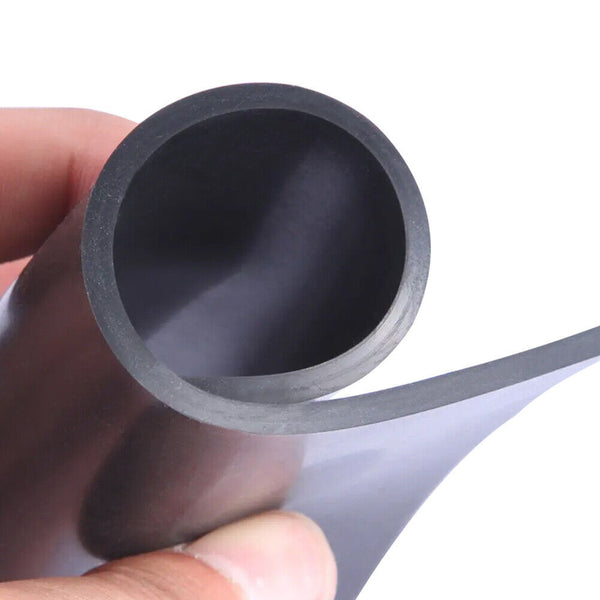

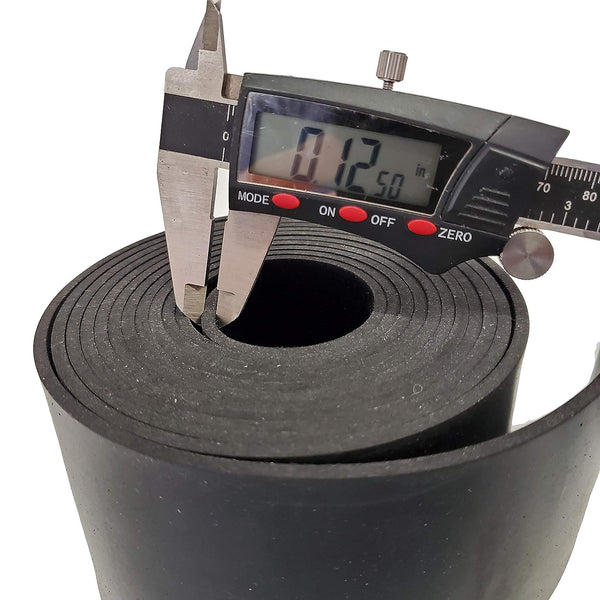

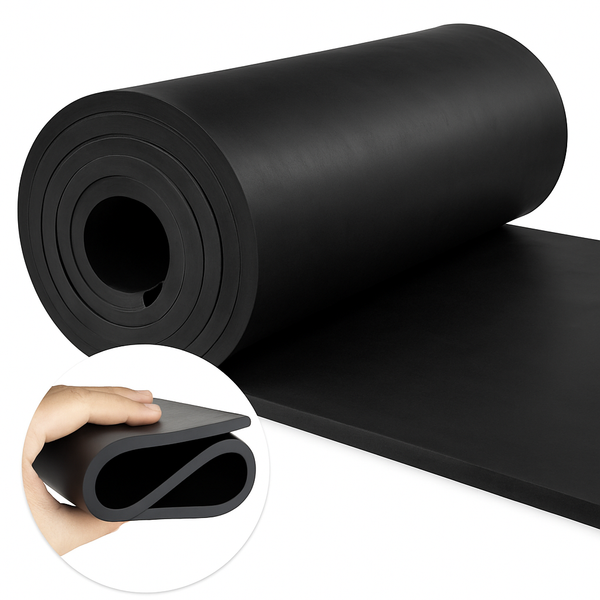

EPDM Rubber Sheet

Ethylene Propylene Diene Monomer — the outdoor and weathering specialist. EPDM rubber sheet is UV-stable, ozone-resistant, and remains flexible from −40°C to +120°C. It is the correct compound for: outdoor seals and gaskets, roofing applications, pond lining, water feature membranes, expansion joint filling, and any application with prolonged weather or UV exposure. EPDM is non-toxic to aquatic life, making it the standard for fish ponds and garden water features. Not suitable for petroleum product contact.

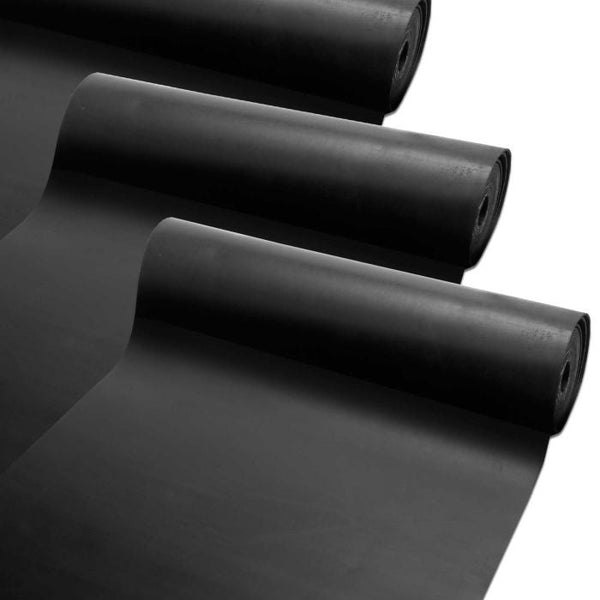

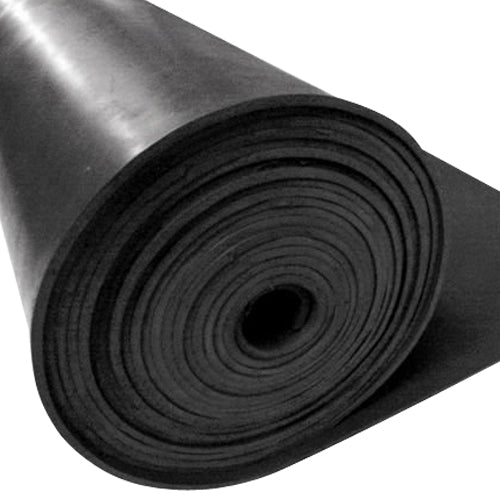

SBR Rubber Sheet

Styrene Butadiene Rubber — the general-purpose workhorse. Manufactured from 90%+ recycled rubber, SBR sheet is abrasion-resistant, cost-effective, and suitable for a wide range of non-specialist indoor applications. Use for: general industrial gaskets, workshop floor underlays, impact protection pads, conveyor system components, and agricultural applications without chemical exposure. SBR degrades under UV and petroleum products — not suitable for outdoor permanent use or oil environments.

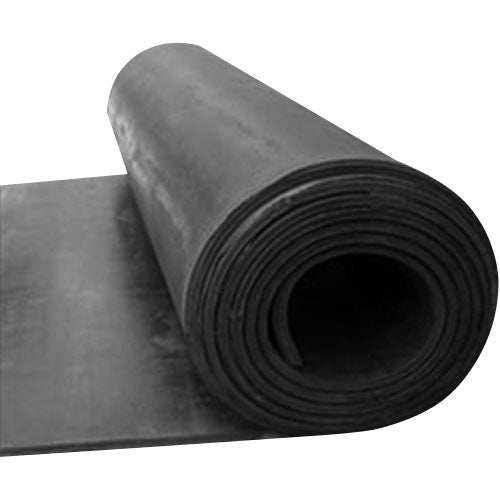

Neoprene Rubber Sheet

Neoprene (polychloroprene / CR) offers the broadest chemical resistance envelope of the standard rubber compounds: good oil resistance, good weather resistance, good flame resistance, and moderate ozone resistance simultaneously. This balance makes neoprene the standard choice for: marine applications, HVAC duct seals, vibration isolation mounts, refrigeration gaskets, and applications requiring both oil and weather resistance where nitrile or EPDM alone would be one-dimensional. Temperature range: −40°C to +100°C.

Nitrile (NBR) Rubber Sheet

Nitrile (Acrylonitrile Butadiene Rubber) has the best oil and fuel resistance of any standard rubber compound. It is the mandatory specification for: hydraulic system seals, fuel system gaskets, oil-resistant floor coverings in vehicle workshops, engineering components in petroleum environments, and any application involving mineral oils, hydraulic fluids, petrol, or diesel. Nitrile's petroleum resistance comes at the cost of poor UV/ozone resistance — not suitable for outdoor applications. Temperature range: −30°C to +100°C.

Natural Rubber Sheet

Natural rubber (NR / latex) offers the highest elasticity, tensile strength, and tear resistance of all rubber compounds — making it the preferred choice for high-flex applications, anti-vibration mounts requiring maximum damping, and engineering components subject to repeated dynamic stress. Also used in food-processing applications where food-grade certification is required (specify food-grade NR). Degrades in UV, ozone, and petroleum contact.

Rubber Sheet by Application

Gasket Cutting & Seals

Rubber sheet is the primary raw material for site-cut gaskets in plumbing, pipework, flanges, and pressure vessels. Compound selection must match the fluid being sealed: water and steam → EPDM or natural rubber; oils and fuels → nitrile; refrigerants → neoprene; outdoor weathering seals → EPDM. Thickness for flange gaskets: 3mm for low-pressure (under 10 bar), 6mm for medium-pressure joints. Cut using a sharp Stanley knife, die punch set, or water-jet for precision profiles.

Vibration & Noise Isolation

Anti-vibration pads cut from neoprene or natural rubber sheet are used under machinery, compressors, pumps, HVAC equipment, and industrial plant to reduce structure-borne vibration transmission. Effectiveness depends on the rubber's dynamic stiffness relative to the mounted mass — typically 6mm to 25mm neoprene sheet for equipment in the 100kg–5,000kg range. Natural rubber offers the highest damping coefficient; neoprene adds oil and weather resistance. Rubber sheet anti-vibration pads are also used under domestic appliances (washing machines, tumble dryers) to reduce noise transmission through floors.

Pond Lining & Water Features

EPDM rubber sheet (0.75mm–1.5mm) is the industry standard for garden pond lining, water feature construction, and rainwater harvesting tank lining. It is non-toxic to fish and plants, UV-stable for 20+ year outdoor lifespan, highly flexible for irregular pond shapes, and resistant to root penetration. Installation: lay over a protective underlay (sand or geotextile fleece), overlap joins by minimum 150mm, bond with EPDM seam tape. Our EPDM sheet is supplied in widths to 6m for large ponds with minimal joins.

Electrical Insulation

Rubber sheet has inherent electrical resistance, but certified electrical insulation applications (HV switchgear, transformer rooms, substation safety mats) require rubber sheet tested and certified to BS EN 61111 with a specific voltage class rating (Class 0: 1,000V; Class 1: 7,500V; Class 2: 17,000V; Class 3: 26,500V; Class 4: 36,000V). Contact us to specify certified HV insulation rubber sheet for your electrical safety application.

Agricultural & Livestock Applications

Rubber sheet is extensively used in UK agriculture: tank lining (slurry, chemical storage), conveyor belting in grain handling, anti-vibration mounts on tractors and trailers, water trough seals, and floor overlays in dairy parlours and livestock buildings. Natural rubber and SBR sheet are the standard compounds for most agricultural applications; nitrile is specified where fuel or chemical contact occurs.

Roofing & Waterproofing

EPDM rubber sheet (1.0mm–1.5mm) is widely used for flat roof waterproofing as an alternative to felt or GRP. EPDM flat roofing is popular with UK building contractors for its long lifespan (20–30 years), single-piece installation on small roofs (reducing seam risk), and ease of repair. Installation requires EPDM-compatible bonding adhesive, perimeter trim, and outlet flashings. Our EPDM sheet is the same material used by professional roofing contractors — supplied directly to trade and DIY at competitive prices.

Acoustic Dampening

Dense rubber sheet (SBR or natural rubber, 6mm–12mm) is used as an acoustic underlay beneath timber and laminate flooring to reduce impact noise transmission between floors. It is also used in recording studios and home cinemas as a decoupling layer for floating floor constructions. Effectiveness is measured by impact sound reduction (ΔLw) — typically 18–22dB for 6mm dense rubber underlay. Combine with mineral wool cavity fill for maximum airborne and impact sound insulation.

Rubber Sheet Thickness Guide

Rubber Sheet Sizes Available

UK Standards & Compliance for Rubber Sheet

BS EN 61111 — Electrical Insulating Matting

Specifies the performance requirements for rubber matting used to protect workers from electric shock in HV environments. Five voltage classes (0–4) with corresponding proof voltage and working voltage ratings. Mandatory for all electrical insulation applications in substations, transformer rooms, and switchgear panels.

BS EN ISO 1402 — Rubber Hose Testing

Referenced for rubber sheeting used in hose and tube manufacturing — defines impulse and pressure requirements for rubber compounds used in fluid conveyance systems.

WRAS Approval (Water Regulations Advisory Scheme)

For rubber sheet in direct contact with potable water (drinking water pipes, tank liners, water fittings), WRAS approval is required in the UK to confirm the material does not contaminate the water supply. Specify WRAS-approved EPDM or natural rubber sheet for potable water applications.

Food Contact Compliance (EC 1935/2004)

Rubber sheet in contact with food or food packaging must comply with EC Regulation 1935/2004 on food contact materials. Specify food-grade natural rubber or EPDM for these applications — standard industrial compounds are not food-safe.

REACH Compliance

All rubber sheet supplied by Rubber Matting Direct is REACH-compliant (EU Regulation 1907/2006) — free from restricted substances including polycyclic aromatic hydrocarbons (PAHs) above threshold levels.

How to Cut Rubber Sheet

Accurate cutting is essential for gasket and seal applications. The correct method depends on thickness and required precision:

• 1.5–3mm: Sharp Stanley knife or rotary cutter along a steel straight edge. Score and fold for clean straight cuts.
• 3–6mm: Heavy-duty utility knife with multiple passes. Avoid sawing action — draw the blade in one clean stroke.
• 6mm+: Jigsaw with a fine-tooth blade (metal-cutting, 20–25 TPI) or bandsaw. Mark cut lines with chalk or silver marker.
• Circular profiles (gaskets): Gasket punch set or hole saw. Lubricate with soapy water for clean cuts in thick sheet.
• Precision profiles: Water-jet cutting — contact us for cut-to-drawing service on nitrile and neoprene sheet.

Rubber Sheet Cost Guide UK 2025

All prices include free UK delivery. Orders before 2pm dispatched same day. Trade account pricing available for 10m²+ orders. View current prices across our full rubber sheet range.
