EPDM Gutter Drip Edge Trim | 2.5m Length | Aluminium | Black/Anthracite/White

EPDM Gutter Drip Edge Trim | Professional Roof Edge Finishing

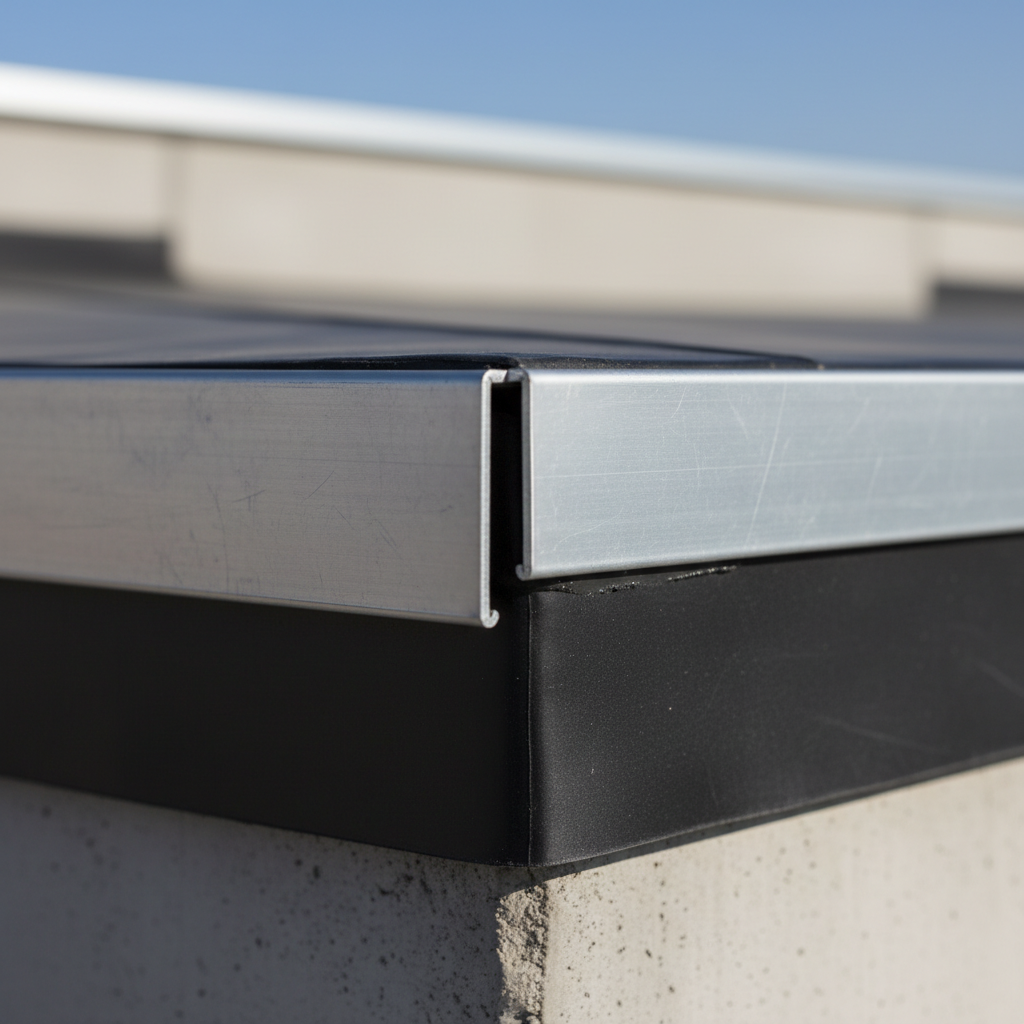

Achieve a clean, professional finish at your roof edge with this powder-coated aluminium drip edge trim. Designed for EPDM rubber roof installations, this trim secures the membrane edge and directs rainwater cleanly into your guttering system, preventing water from running down the fascia or soffit.

🔧 Specifications

✅ Key Benefits

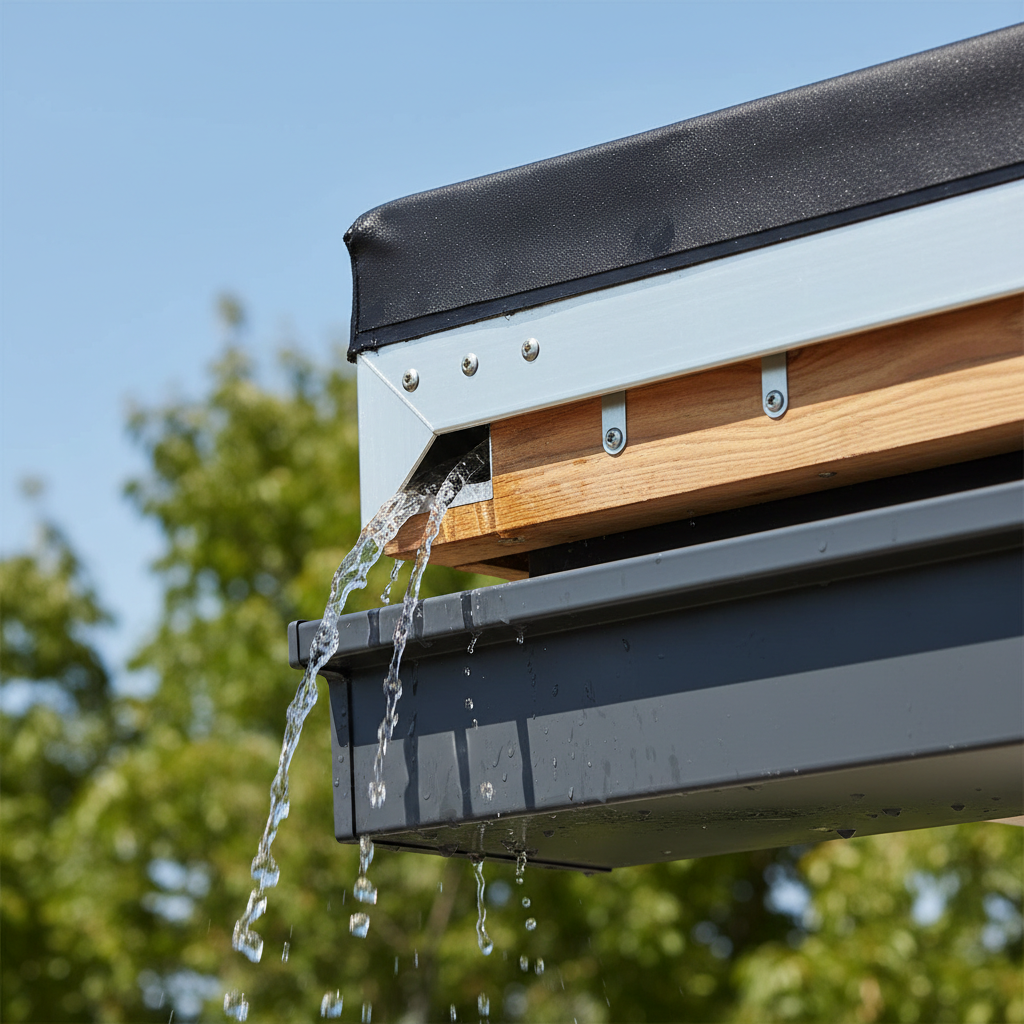

• Clean Water Run-Off – Drip edge directs water into gutter, not down fascia
• Professional Appearance – Neat, defined edge to your EPDM roof
• Protects Fascia – Prevents water staining and rot on timber fascias
• Colour Options – Match your existing windows, doors, or guttering
• Corrosion Resistant – Aluminium won't rust, even in coastal areas
• Easy Installation – Fixing clips included for secure attachment
• Long-Lasting – Maintenance-free for the life of your roof

🏠 Perfect For

• Flat roof edges above guttering
• Extensions and garage roofs with external drainage
• Garden rooms and home offices
• Commercial buildings with perimeter gutters
• Any EPDM roof requiring clean water discharge
• Upgrading old felt roofs to modern EPDM

🎨 Colour Guide

📐 Drip Edge vs Kerb Edge

🛠️ Installation Guide

1. Prepare the Edge – Ensure deck and fascia are sound and clean
2. Position the Trim – Overhang should extend into gutter by 10-20mm
3. Attach Fixing Clips – Space at 300mm centres along the edge
4. Secure the Trim – Click trim into fixing clips
5. Join Sections – Overlap by 50mm, seal with silicone if required
6. Lay EPDM Membrane – Bring membrane over trim and bond with adhesive
7. Trim Excess – Cut membrane flush with drip edge
8. Roll & Seal – Use seam roller for secure adhesive bond

📦 Calculating Quantities

Each piece covers 2.5 metres of roof edge. To calculate:

1. Measure total gutter edge length in metres
2. Divide by 2.5
3. Add 10% for overlaps and cuts
4. Round up to whole number

Example: 8m gutter edge ÷ 2.5 = 3.2, +10% = 3.5 → Order 4 pieces

🔗 Complete Your EPDM System

Combine with:

• EPDM Membrane – Main roofing surface
• EPDM Corner Pieces – Pre-formed corner transitions
• EPDM Wall Flashing – Where roof meets walls
• EPDM Kerb Edge – For edges without gutters
• EPDM Contact Adhesive – For membrane bonding
• EPDM Tool Kit – Essential installation tools

📋 Technical Properties

💬 Frequently Asked Questions

Q: Will the drip edge fit into my existing gutter?
A: Yes, the drip edge is designed to overhang into standard UK guttering (112mm half-round or 117mm square line). Position so water falls into the gutter.

Q: Can I paint this trim a different colour?
A: While possible with proper primer, we recommend choosing a colour match from our three options. The powder coating provides superior durability compared to site-applied paint.

Q: Do I need to seal the joints between pieces?
A: For extra weatherproofing, apply a bead of silicone sealant between overlapping sections. This prevents any wind-driven rain from entering.

Q: Is anthracite the same as RAL 7016?
A: Very close match, ideal for coordinating with modern anthracite window frames, doors, and fascias.

Q: Can this be used with other membrane types?
A: Yes, compatible with TPO, PVC, and other single-ply roofing membranes as well as EPDM.

Quality EPDM roofing trims from Rubber Matting Direct – for professional, watertight flat roof installations.
