Rubber Gym Flooring UK — Professional Grade, Home & Commercial

Heavy-duty rubber gym flooring manufactured from vulcanised SBR rubber with 90%+ recycled content. Slip-rated R10–R11, Shore A hardness 60–70, tensile strength 1.5–2.5 MPa. Supplied to CrossFit boxes, PT studios, commercial fitness centres and over 10,000 home gyms across the UK.

Gym Flooring Thickness Guide

Choosing the right thickness is the single most important decision. Too thin and you risk floor damage and joint injury. Too thick increases cost unnecessarily for light use areas.

Thickness	Zone / Application	Max Weight Drop	Noise Reduction
6–10mm	Yoga, pilates, cardio, stretching zones	Light equipment only	~12dB
15–20mm ⭐	Free weights, general gym floor, CrossFit, HIIT	Up to 60kg	~19dB
30mm	Deadlift zones, PT studios, barbell areas	Up to 120kg	~22dB
40mm+	Olympic lifting platforms, competition areas	Unlimited barbell drops	~26dB

⭐ Most popular for home gyms and mixed-use commercial floors

Home Gym Flooring vs Commercial Gym Flooring

	🏠 Home Gym	🏢 Commercial Gym
Recommended thickness	15–20mm	20mm (floor) + 40mm (lifting zones)
Installation	DIY, no adhesive	Adhesive perimeter recommended
Best format	Interlocking 1m×1m tiles	Rolls (large areas) + tiles (zones)
Typical area	10–40m²	100m²+
Noise concern	High (neighbours / family)	Medium (structural requirements)
Budget range	£200–£800	£2,000–£25,000+

Why Rubber — Not Foam or PVC?

Property	Rubber (SBR/EPDM)	EVA Foam	PVC
Weight drop protection	✅ Excellent	⚠️ Poor	⚠️ Poor
Durability (years)	✅ 10–15+	❌ 2–4	⚠️ 5–8
Slip resistance	✅ R10–R11	⚠️ R9	✅ R10
Noise reduction	✅ High	⚠️ Medium	❌ Low
Heavy equipment stable	✅ Yes	❌ Compresses	⚠️ Marginal
Recycled content	✅ 90%+	❌ Virgin material	❌ Virgin material

What Our Customers Use It For

Frequently Asked Questions

How thick should rubber gym flooring be?

Thickness depends on use: 6–10mm suits yoga and light cardio. 15–20mm is standard for free weights and general gym floors. 30–40mm is required for Olympic lifting platforms and heavy deadlift zones. For mixed-use commercial gyms, 20mm throughout with 40mm at lifting platforms is the industry standard.

What is the best rubber gym flooring for a home gym?

For most home gyms, 20mm interlocking SBR rubber tiles are the best choice — DIY installation without adhesive, excellent impact absorption, easy to replace individual tiles, and 10–15 year lifespan under normal use.

How much does rubber gym flooring cost per m² in the UK?

From £14/m² for 20mm interlocking tiles to £45/m² for premium 40mm commercial rubber. A typical 20m² home gym costs £280–£600 depending on thickness. Use our calculator above to get an instant estimate.

What is SBR rubber and why is it used for gym flooring?

SBR (Styrene Butadiene Rubber) is a vulcanised rubber compound with 90%+ recycled content. It offers Shore A hardness 60–70 (firm but impact-absorbing), R10–R11 slip resistance, and tensile strength of 1.5–2.5 MPa — the right combination for gym environments where dropped weights, wet feet and heavy equipment are all present.

Can rubber gym flooring be fitted on concrete floors?

Yes. Interlocking tiles install directly onto concrete using the loose-lay method — no adhesive needed for home gyms. The combined weight of equipment and tiles holds them firmly. Ensure the concrete is clean, dry and reasonably level before installation.

Gym Flooring by Zone — Specify the Right Product for Every Area

The most common and costly gym flooring mistake is using one product throughout. A single gym has multiple zones with very different load, impact, and wear requirements. Over-specifying in cardio zones wastes budget; under-specifying in lifting zones leads to rapid failure and subfloor damage.

Zone	Recommended Thickness	Format	Key Requirement
Cardio (treadmills, bikes, rowers)	6–8mm	Roll	Vibration damping, easy to clean
Stretching & functional training	10mm	Tiles or roll	Comfort underfoot
Free weights (dumbbells, kettlebells)	15mm	Tiles or roll	Impact absorption, equipment stability
Barbell & squat rack area	17–20mm	Tiles	Heavy point load distribution
Olympic lifting / drop zone	20–40mm	Tiles (platform)	Maximum impact attenuation
Boxing / martial arts	20–25mm	Tiles	Shock absorption, lateral stability
CrossFit box (general)	15–20mm	Tiles	Multi-purpose durability
Commercial entrance / reception	6–10mm	Roll	Heavy foot traffic, easy maintenance

Gym Flooring vs Foam Mats vs PVC — Full Comparison

Property	Rubber Gym Flooring	EVA Foam Mats	PVC/Vinyl	Carpet Tile
Durability under weights	✅ Excellent (20+ years)	❌ Indents permanently	⚠️ Moderate (5–10yr)	❌ Poor
Impact absorption (dropped weights)	✅ Excellent	✅ Good (light weights only)	❌ Poor	❌ None
Waterproof	✅ Yes	⚠️ Semi — absorbs sweat	✅ Yes	❌ No
Slip resistance	✅ R10–R11	⚠️ Slides under lateral load	⚠️ R9	⚠️ Loses grip when wet
Noise/vibration reduction	✅ Excellent	✅ Good	❌ Poor	⚠️ Moderate
Odour	⚠️ Initial rubber smell (fades)	⚠️ Off-gassing (chemical)	✅ Minimal	⚠️ Traps sweat odour
Commercial suitability	✅ Yes	❌ Domestic only	✅ Yes	❌ Not for weights
Lifespan	20–30 years	2–5 years	10–15 years	3–5 years

Home Gym Rubber Flooring — Sizing Guide

Measure your space in metres (length × width = m²). Add 10% for cuts and waste. For interlocking tiles: divide by tile size (0.25m² for 500mm tiles, 1m² for 1000mm tiles). For rolls: divide total area by roll width to get linear metres.

Room Size	Area	500mm Tiles (15mm)	Approx Cost (15mm)
Small home gym (2.5m × 2.5m)	6.25m²	28 tiles	£112–£188
Standard garage gym (3m × 4m)	12m²	52 tiles	£216–£360
Large garage gym (4m × 5m)	20m²	88 tiles	£360–£600
Commercial PT studio (6m × 8m)	48m²	210 tiles	£864–£1,440

UK Standards for Gym Flooring

• DIN 51130 (Slip Resistance R9–R13): All commercial gym flooring should be R10 minimum. Wet changing areas and shower approaches require R11+.
• BS EN ISO 10874 (Use Class): Commercial gym flooring should be specified to Use Class 33 (heavy commercial) or Class 43 (heavy industrial) for high-impact zones.
• Workplace (Health, Safety and Welfare) Regulations 1992: Floors must be suitable, in good condition, and free from obstruction. Anti-fatigue matting at standing workstations (reception desks, PT stations) directly addresses this obligation.

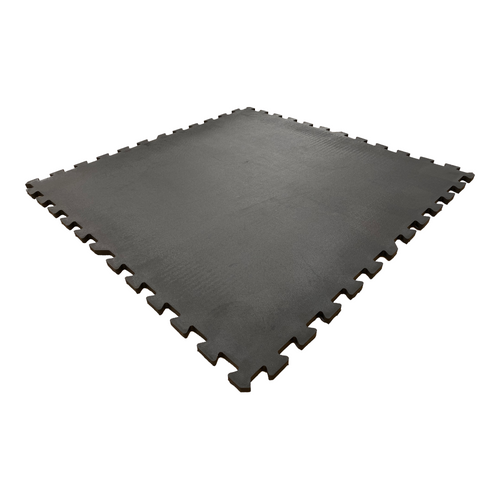

Installation Guide — Interlocking Rubber Gym Tiles

1. Surface prep: Clean, dry, flat floor. Remove debris. Fill cracks with self-levelling compound. Concrete must be dust-free.
2. Acclimatise: Allow tiles to sit at room temperature for 24 hours before installation — rubber expands and contracts with temperature.
3. Start point: Begin from the centre of the room, not a corner. This minimises edge cuts and gives a balanced appearance.
4. Connect tiles: Click jigsaw edges firmly together. Use a rubber mallet for stubborn connections on thicker tiles.
5. Cut perimeter: Measure and mark with chalk or marker. Use a jigsaw (15mm+) or sharp Stanley knife (10mm or below). Always cut on a sacrificial board.
6. Edge strips: Install bevelled edge strips on all exposed perimeter edges — eliminates trip hazards and gives a professional finish.
7. No adhesive needed for most installations — tile weight and interlocking holds them in place.

Gym Flooring Cost Guide UK 2025

Product	Thickness	Price Per m² (inc. free delivery)	Best For
SBR Roll (cardio)	6mm	£8–£14/m²	Cardio zones, spin studios
SBR Roll	10mm	£14–£22/m²	Functional training, stretching
Interlocking Tiles	15mm	£18–£30/m²	Home gym general, free weights
Interlocking Tiles	20mm	£25–£40/m²	Commercial gym, barbell zones
Heavy Duty Tiles	25mm	£30–£50/m²	CrossFit, Olympic lifting
Olympic Platform Tiles	40mm	£40–£65/m²	Drop zones, weightlifting platforms

Free UK delivery on all orders. Same-day dispatch before 2pm. Trade pricing available for gym fit-outs and contractors. View current prices across our full gym flooring range.

Why Choose Rubber Matting Direct for Gym Flooring?

• ✅ 250+ products — the UK's most comprehensive gym flooring range
• ✅ Free UK delivery on all orders, no minimum spend
• ✅ Same-day dispatch on orders before 2pm
• ✅ Cut to size — all roll products cut to any length
• ✅ Trade accounts available for gym fit-out contractors
• ✅ UK stock — no import delays, deliver next working day
• ✅ Technical support — zone-by-zone specification advice
